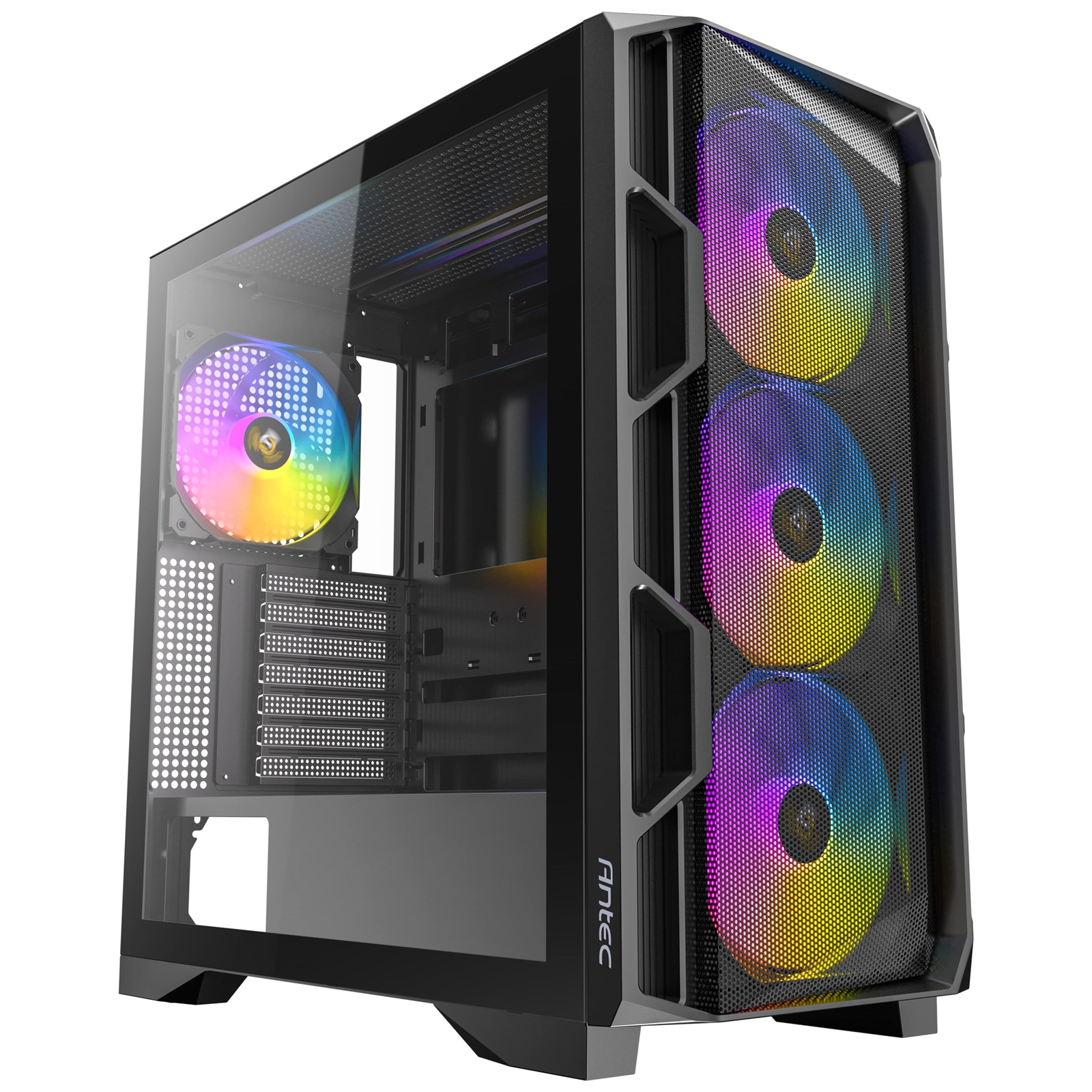

Antec AX1000 Mid Tower PC Case
Features
1. Large-area steel mesh design on the front panel for improved heat dissipation.
2. Tool-free full-view tempered glass side panel and steel side panel for easy installation and showcasing your build.
3. Comes standard with three 140mm ARGB PWM fans at the front (secondary fans), one 140mm ARGB PWM fan at the rear (main fan), and a 6+6 ARGB PWM controller.
4. Convenient top-mounted I/O panel supporting 2 x USB 3.0 ports and 1 x Type-C 3.2 Gen 2 (10Gbps) port.
5. Supports water cooling radiators up to 360mm in length at both the front and top.
6. Ample storage space with full support for SSDs and HDDs.
7. 30mm cable management space for a better building experience.
8. Detachable magnetic dust filters on the top, bottom, and right side for easy cleaning.
9. Rear-mounted motherboard I/O ports located behind the case motherboard tray for a cleaner front appearance, improved cable management, enhanced aesthetics, maintained transparency, and better overall space and cooling efficiency.
10. Equipped with 7 independent PCIe slot covers with two adjustable modes.
11. Comes with 3 cable routing clips to help users organize cables and prevent clutter caused by excessive wiring.
Specifications
Dimensions
480 x 235 x 470mm
Form Factor
Mid tower
Materials
Steel + Plastic
Mainboard Support
E-ATX, ATX, Micro-ATX , ITX
Front Access & Controls
Power, Reset, LED Control button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Mic/HD-AUDIO
Side Panel
Tempered Glass Side Panel
Fan
Front 3 x140 / 3 x 120mm
Top 2x 140 / 3 x 120mm
Power Supply Shroud2 x 140 / 2 x 120mm
Rear1 x 140 / 1 x 120mm
Included Fan(s)3 x 140mm ARGB PWM Fans at the front + 1 x 140mm ARGB PWM Fan at the rear + 6-port ARGB PWM fan controller
Radiator Support
Front120 / 140 / 240 / 280 / 360mm
Top120 / 140 / 240 / 280 / 360mm(Maximum RAM height: 52mm)
Rear120 / 140mm
Clearance
Max GPU Length=420mm
Max CPU Cooler Height=185mm
Max PSU Length(Include cable)=240mm
Miscellaneous
Dust Filter Top / Right Hand Side / Bottom
Net Weight7.70 Kg
Gross Weight8.95 Kg
Warranty1 Year
