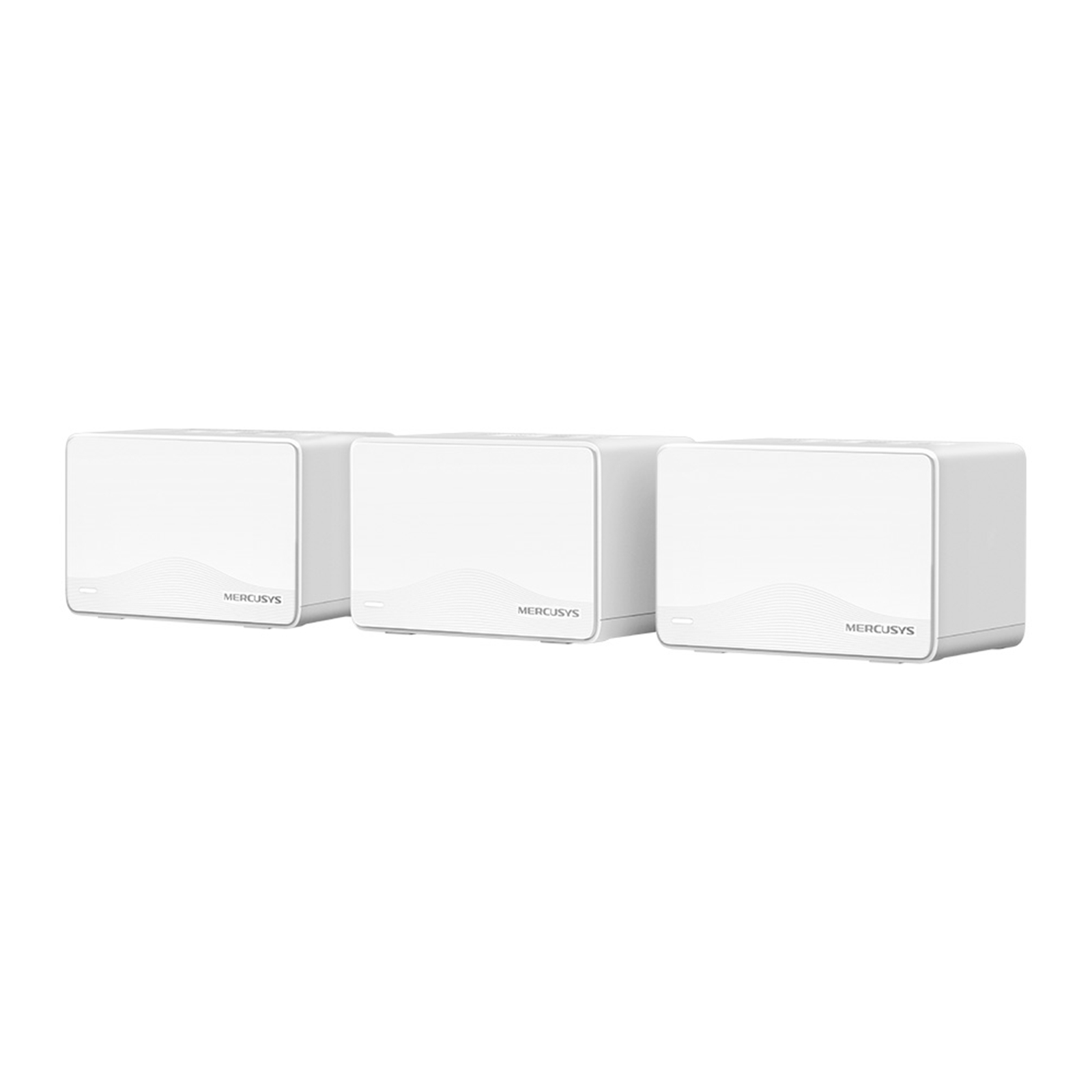

Mercusys BE3600 Halo H25BE Whole Home Mesh Wi-Fi 7 System
Blazing-Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Newest Wi-Fi 7
Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.
Seamless Roaming for a Smooth Network Experience
No more sudden signal drops or lagging Wi-Fi when you're walking around the house.
Multi-Link Operation (MLO) Increases throughput, reduces latency, and improves reliability for emerging applications.
Full Gigabit Ports
3x Gigabit ports per Halo unit for lightning-fast wired connections.
Whole Home Multi-Gigabit Coverage
Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .
Specifications
Wireless
Wireless Standards
5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed
Signal Rate
2880 Mbps at 5 GHz
688 Mbps at 2.4 GHz
Reception Sensitivity
2.4G: -97dBm
5G: -98.5dBm
Transmission Power
5G band1 band2 < 23dBm
5G band3 < 30dBm
2.4G band < 20dBm
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Mesh protocol
802.11k/v/r
Software
Operation Modes
Router, Access Point
Quality of Service
WMM
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Local Management, Remote Management, Multi-Managers
DHCP
Server, Client
Firewall Security
SPI Firewall
Protocols
Supports IPv4 and IPv6
Guest Network
2.4 GHz Guest Network
5 GHz Guest Network
Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
Hardware
Dimensions (W X D X H)
5 x 3.2 x 3.3 in (128 x 81.3 x 83.7 mm))
Interfaces
3x 1 Gbps Ports (WAN/LAN auto-sensing)
Button
Reset button
Others Package Contents
3-pack
3x Halo H25BE Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
