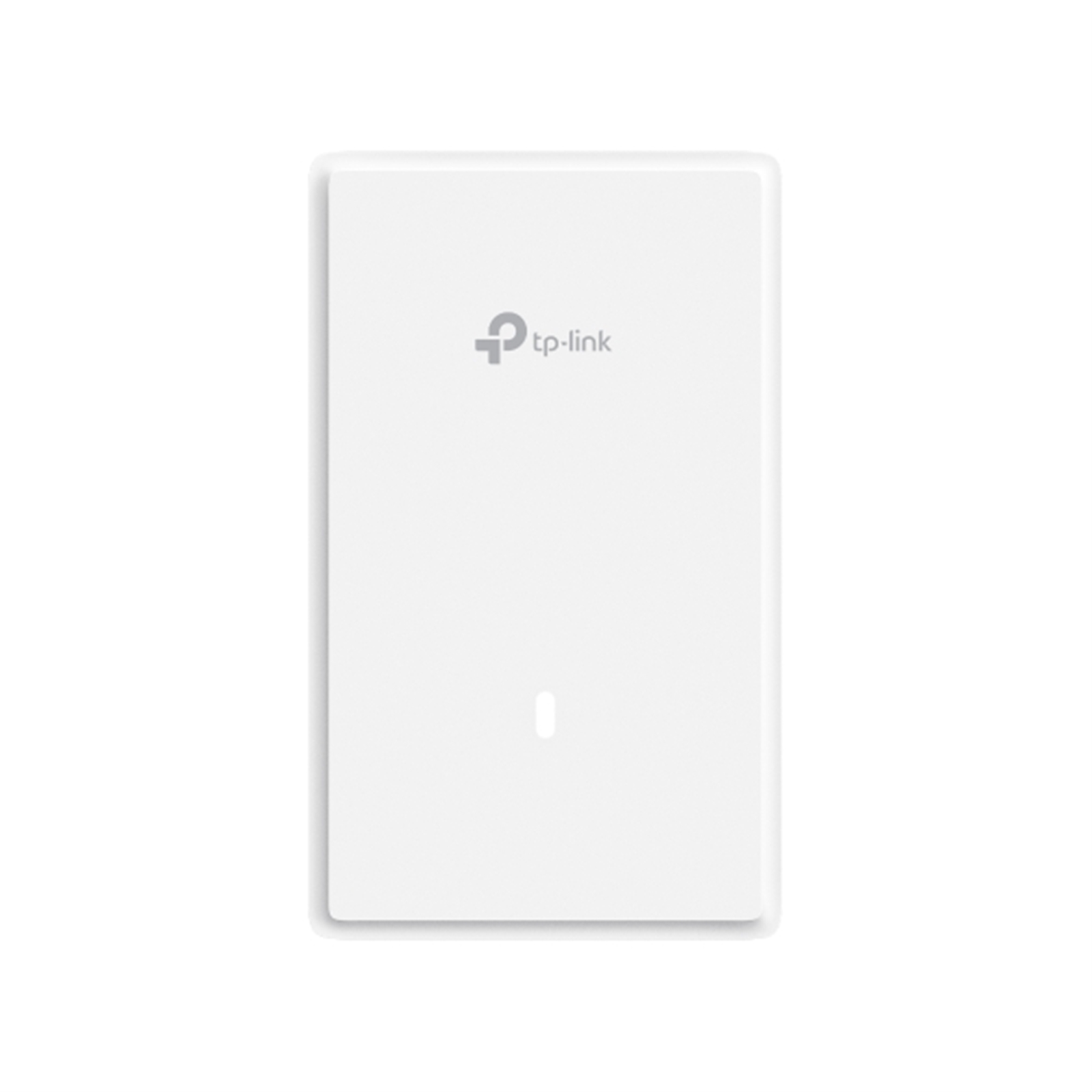

BE3600 Wall Plate Wi-Fi 7 Access Point
BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
1 x 2.5G PoE input port + 1x 2.5G pass-through port + 2x Gigabit RJ45 downlink ports.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications
HARDWARE FEATURES
Interface
Uplink: 1 x 2.5G Ethernet Port
Downlink: 1 x 2.5G Ethernet Port + 2x Gigabit Ethernet Ports
(The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.)
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3at/bt PoE
Max. Power Consumption
802.3bt: 17W (PoE Out support 15.4W)
802.3at: 17W (PoE Out support 7W)
Dimensions ( W x D x H )
143 x 86 x 40 mm (5.6 x 3.4 x 1.6 in)
Antenna
4x Internal Antennas
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi
Mounting
Wall Mounting (Screws included)
WIRELESS FEATURES
Coverage
50 M squared(600 ft²)**
Concurrent Clients
250
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2882 Mbps
2.4 GHz: Up to 688 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz, band 1 & band 2, EIRP)
<25 dBm (5GHz, band 3, EIRP)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Require the use of an Omada controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
CertificationCE, RoHS
Package Content
EAP725-Wall
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0–40 c (32–104 f)
Storage Temperature: -40–70 c (-40–158 f)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
