- Model: UACC-PoE++-10G
- In Stock: 105

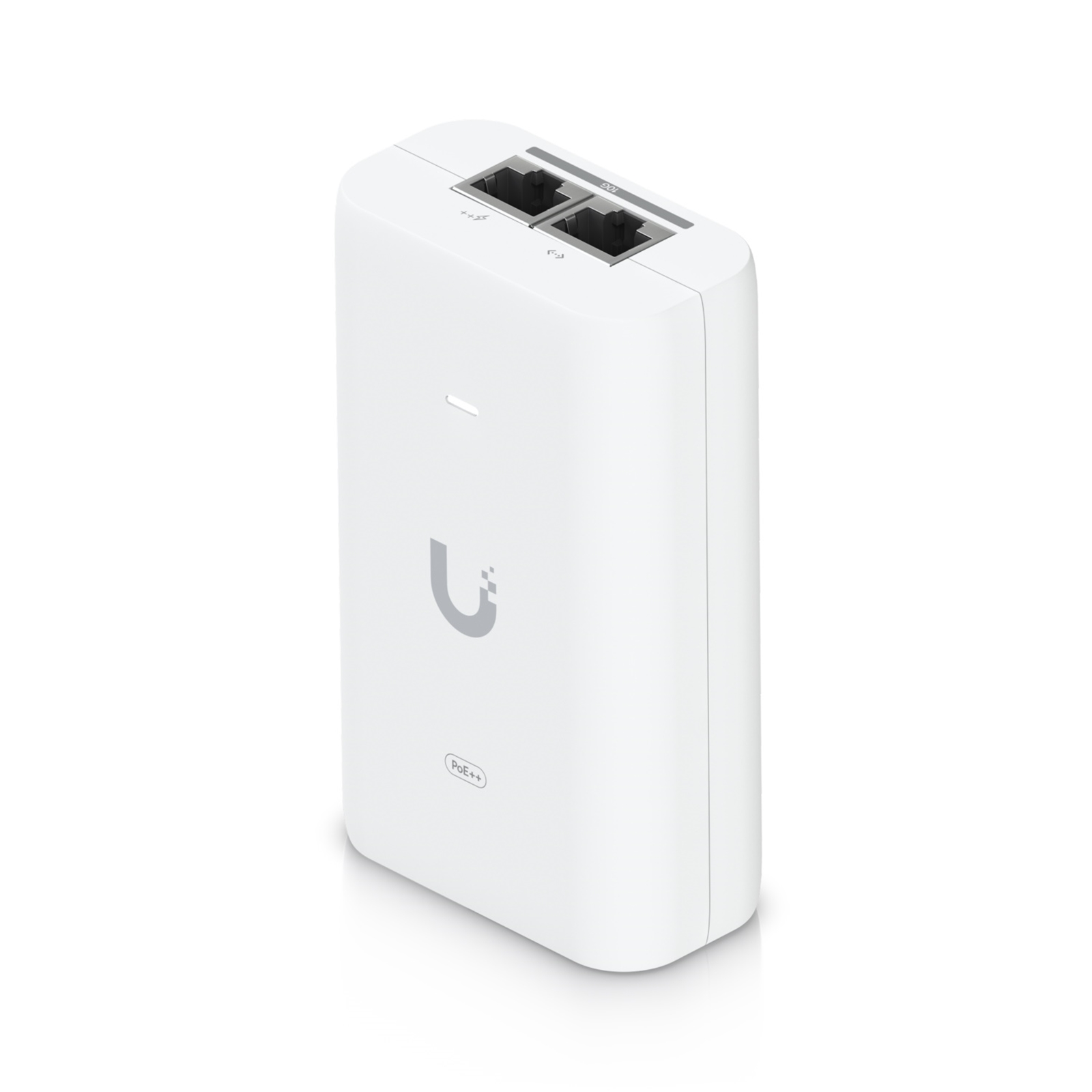

Ubiquiti UACC-POE++-10G Universal 802.3bt 10G 60W Power POE++ Injector
£40.92
Order in the next --h --m --s for same-day dispatch!
We aim to same-day ship all orders placed before 4:00 PM,
Monday to Friday with RM 24® Tracked as standard.
Excludes bank holidays. Orders placed after cut-off will ship the next working day.
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.Delivers up to 60W of PoE++Surge, peak pulse, and overcurrent protectionContains RJ45 data input, AC cable with earth ground, and PoE++ outputLED indicator for status...
- Shipping Weight: 0.21 kgs
- Manufactured by: UBIQUITI
- This product was added to our catalog on Wednesday 01 October, 2025.
- ONLINE ONLY: This item is shipped direct from our suppliers warehouse, please allow 1-2 working days for delivery
- GTIN : 0810084699515
Description
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output Voltage
54V DC @ 1.12A
LAN Activity Indicator
No
Gigabit LAN Port
Yes, up to 10 GbE
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
1.5A max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>88%
Output Ripple
1% max.
Switching Frequency
65 kHz
Line Regulation
< 2%
Load Regulation
< 5%
2-Pair Powering
No
4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / POE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A power
Peak Pulse Current
36A data
Shunt Capacitance
<5 pF Data
Response Time
<1 ns
Max. PoE+ wattage per port by PSE
60W
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output Voltage
54V DC @ 1.12A
LAN Activity Indicator
No
Gigabit LAN Port
Yes, up to 10 GbE
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
1.5A max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>88%
Output Ripple
1% max.
Switching Frequency
65 kHz
Line Regulation
< 2%
Load Regulation
< 5%
2-Pair Powering
No
4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / POE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A power
Peak Pulse Current
36A data
Shunt Capacitance
<5 pF Data
Response Time
<1 ns
Max. PoE+ wattage per port by PSE
60W
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
