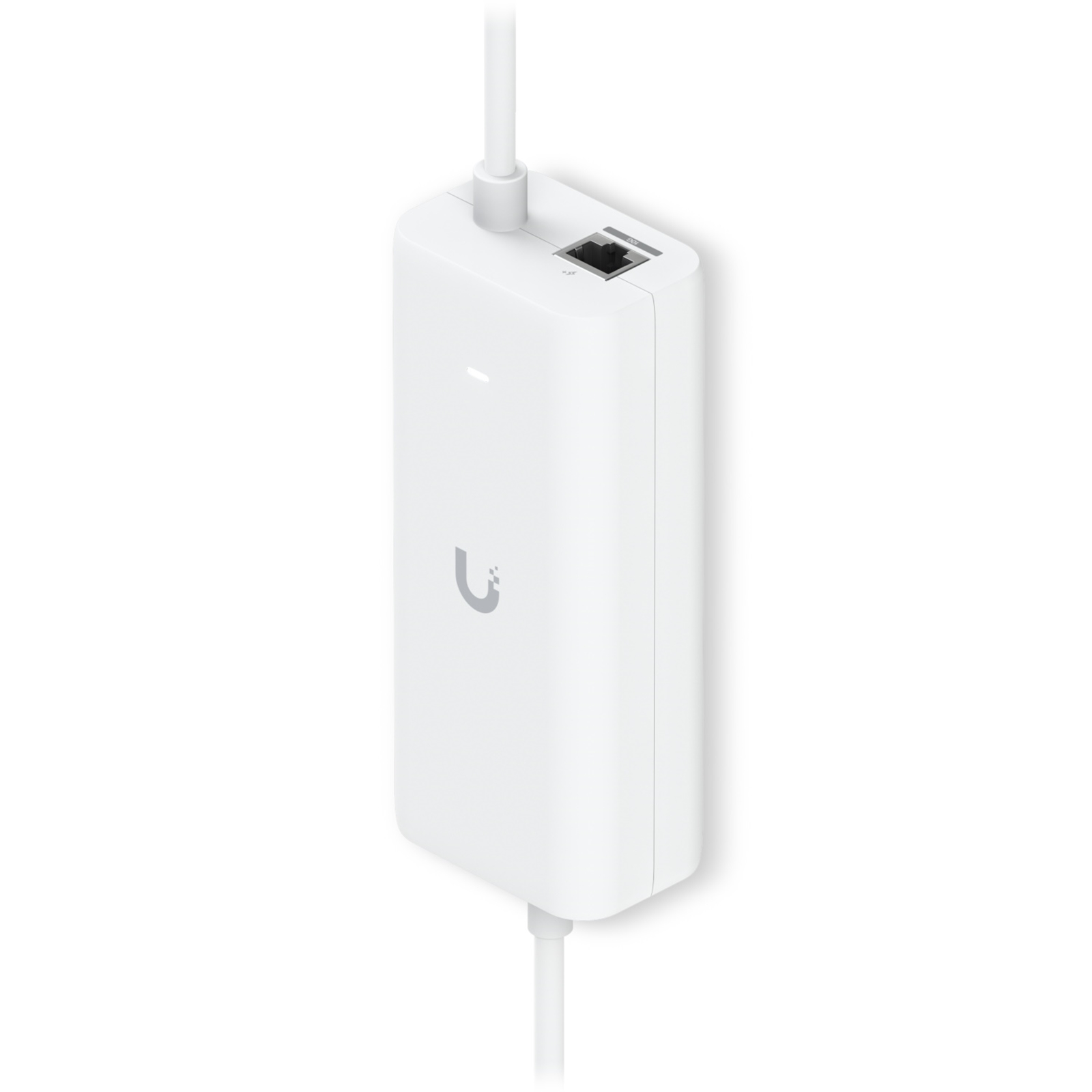

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount - sold separately
Lockable latch designed for power cord security
Dimensions
146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
Weight
358 g (12.6 oz)
Cable Length
Type-C/Ethernet: 150 cm (4.9 ft)
Power cord: 180 cm (5.9 ft)
Output Voltage
Type-C: 5V@ 5A
PoE+: 48V@ 0.65A
LAN Activity Indicator
No
Gigabit LAN Port
Up to 10 GbE
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
1.5A max.
Inrush Current
120A
Efficiency
82%
Output Ripple
1% max.
Switching Frequency
65 kHz
Line Regulation
< 5%
Load Regulation
< 5%
2-Pair Powering
No
4-Pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / POE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A power
Peak Pulse Current
36A data
Shunt Capacitance
<5 pF Data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
