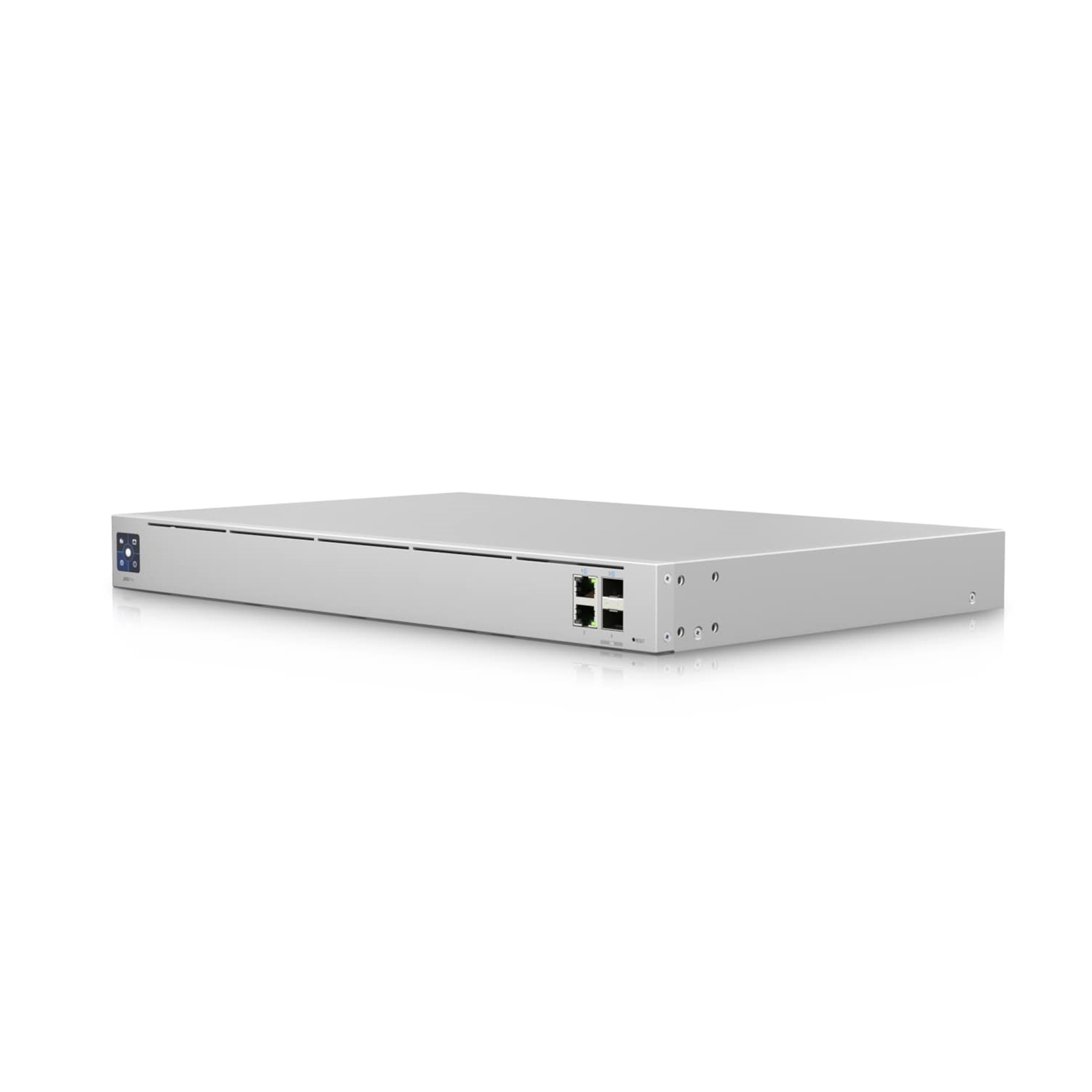

The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Key Features
1.7 GHz quad-core processor
(2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
(2) LAN ports (GbE RJ45 and 10G SFP+)
Enterprise-class DPI, IPS/IDS, and layered firewall configuration
Power redundancy when connected to the UniFi SmartPower RPS (sold separately)
SmartPower outlet (125VAC/2A) for an external modem
1U-sized, rack-mountable device
Specifications
Physical
Dimensions
442.4 x 43.7 x 285.6 mm
Weight
3.42KG
Hardware
Processor Specs
Quad-core ARM Cortex-A57 at 1.7 GHz
Memory Information
2Gb DDR4
Management Interface
Ethernet
Networking Interface
LAN
1 x GbE RJ45 port
10G SFP+ port
WAN
1 x GbE RJ45 port
10G SFP+ port
Buttons
Factory Reset
Power Method
AC Input - 200-240VAC 1.7A 50/60Hz
RPS DC Input - 11.5VDC 2.87A
Power Supply
AC/DC internal 50W
Max Power Consumption
30W
Environmental
ESD/EMP protection
Air: ± 15 kV, contact: ± 8 kV
Operating temperature
-10 to 40° C (14 to 104° F)
Operating humidity
5 - 95% noncondensing
Certifications
CE, FCC, IC
Box Contents
UXG-PRO
Rackmount Ears
Rackmount screws
Rack screws and nuts
Rubber Feet (desktop use)
Power Cord
English
