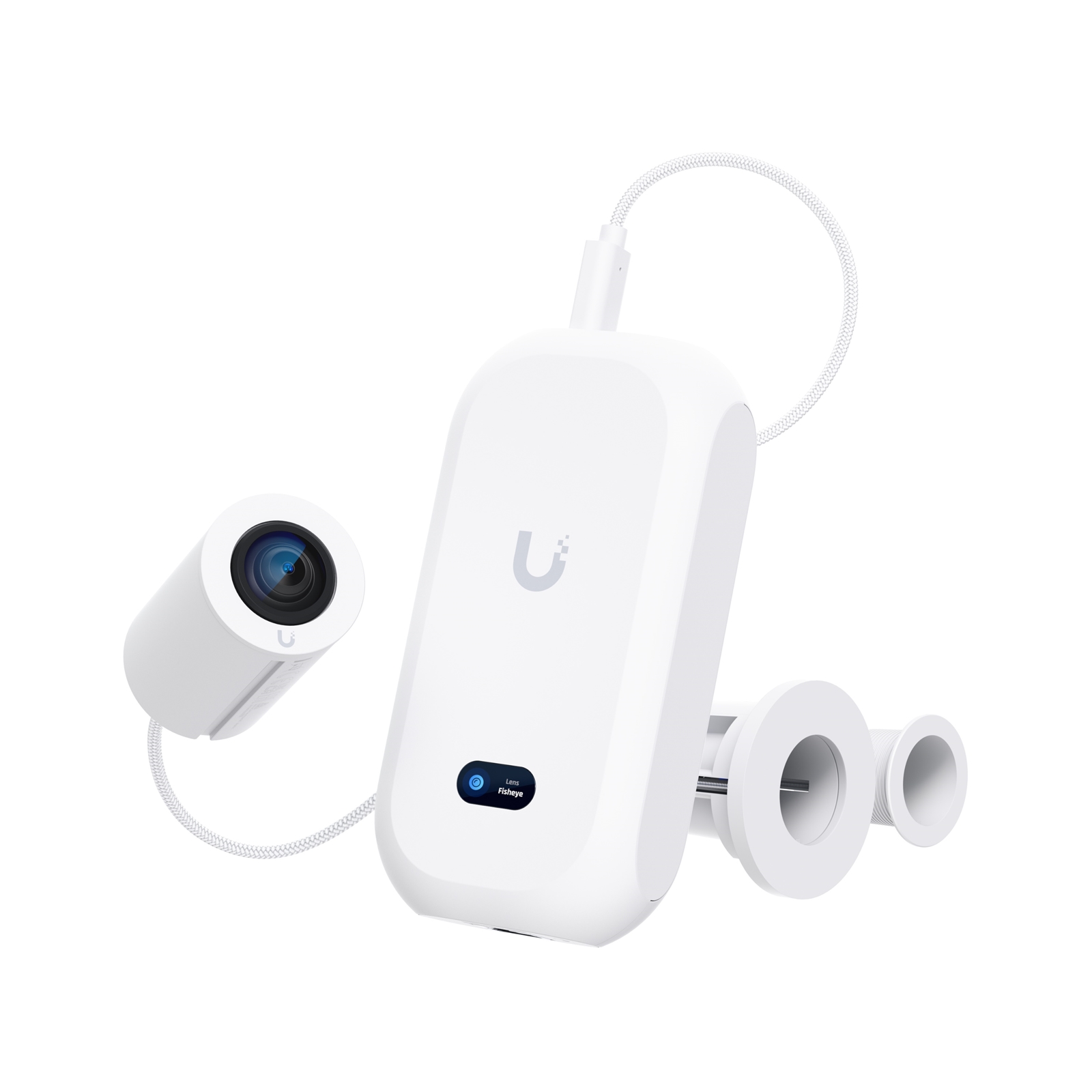

A complete ceiling 360 degree AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Dimensions
UVC-AI-Theta-Hub: 170 x 70 x 38mm
UVC-AI-Theta-ProLens360: 36.6mm diameter, 58.9mm long
Weight
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-ProLens360: 58 g (2 oz)
UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)
Enclosure Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate
Mount Material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate
Cable Jacket Enclosure Dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable Jacket Enclosure Material
PVC
Cable Length
1m
Cable Diameter
3.7mm
Cable Jacket Material
Woven Fabric
Cable Weight
18g
Cable Connector Type
Theta Proprietary
Sensor
8MP 1/1.8" CMOS
Lens
Fixed Focal Length
Viewing Angle
H: 180°, V: 180°, D: 180°
Resolution
4MP 2160 x 2160 (1:1)
Max. Frame Rate
24 FPS
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Power Supply
5V DC, 0.5A
Processor
Quad-core Arm Cortex-A53 based chip
Networking Interface
GbE RJ45 port
Max. Power Consumption
12.5W
Power Method
PoE
Supported Voltage Range
37—57V DC
Output Power
5V DC, 1A per port
Display
0.96" color display
Button
Factory Reset
Mounting
Wall/Ceiling Mount
Certifications
FCC, IC, CE
