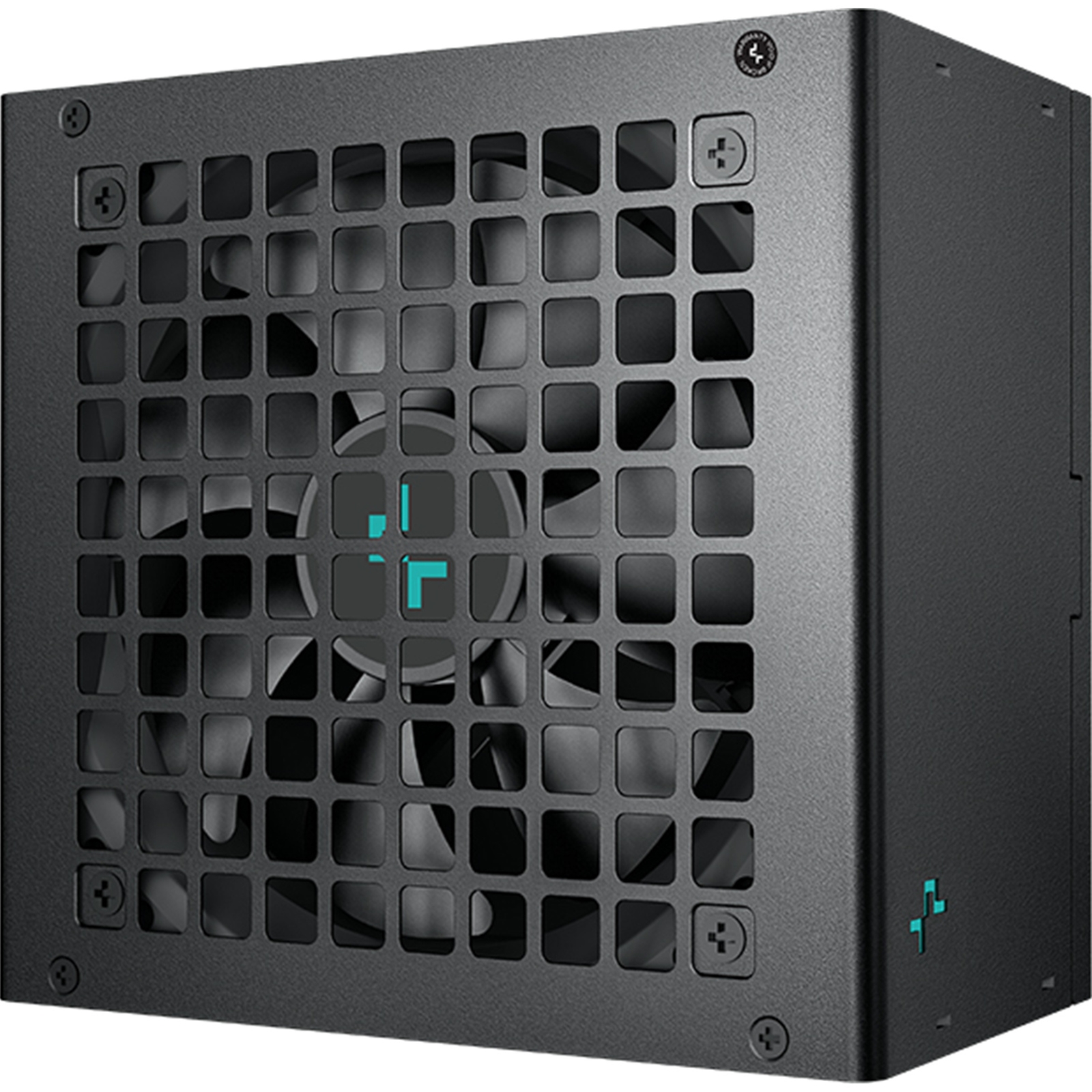

The DeepCool PL750D is a 750W non-modular power supply unit (PSU) that complies with the Intel ATX12V V3.1 standard. Designed for reliability and efficiency, it features a 120mm hydro-bearing fan for optimal cooling and carries an 80 PLUS Bronze certification, ensuring at least 85% energy efficiency under typical loads.
Key Specifications:
Form Factor:
ATX12V V3.1
Dimensions:
150 mm (W) x 140 mm (L) x 86 mm (H)
Efficiency Certification:
80 PLUS Bronze
Fan Size:
120 mm
Fan Bearing:
Hydro Bearing
Topology:
Active PFC + DC to DC
Capacitors:
Chinese Electrolytic Capacitors
Hold-Up Time:
=16 ms
Efficiency:
=85% under typical load (50% loading)
Protections:
Over Power Protection (OPP)
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Over Current Protection (OCP)
Under Voltage Protection (UVP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)
Operating Temperature:
0°C to 40°C
Regulatory Certifications:
CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TUV-RH
Environmental Compliance:
WEEE, RoHS
Mean Time Between Failures (MTBF):
100,000 hours
Connectors:
1 x 20+4 Pin ATX (Motherboard Power)
2 x 4+4 Pin ATX12V (CPU Power)
3 x 6+2 Pin PCIe (GPU Power)
8 x SATA Power
2 x 4-Pin Molex (Peripheral Power)
1 x 16-Pin (12+4) 12VHPWR Connector (PCIe 5.0)
Special Features:
The inclusion of a 16AWG 12VHPWR cable enables support for next-generation GPUs with higher power demands. The PL750D also uses premium electrolytic capacitors to ensure enhanced durability and performance.
Warranty:
Backed by a 5-year limited warranty, the DeepCool PL750D delivers stable, reliable power for both legacy and next-gen PC builds.
