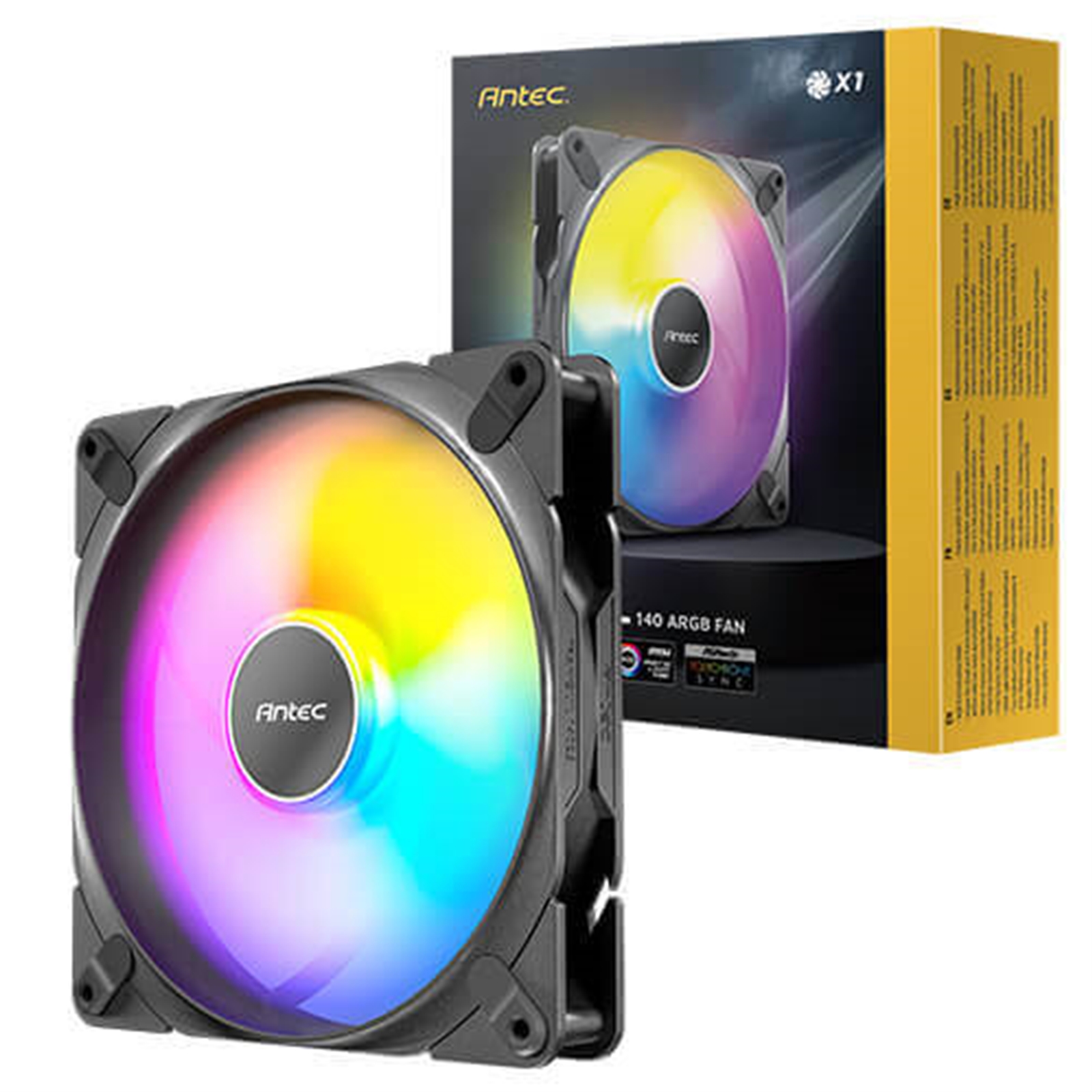

Tranquil 140 ARGB PWM FAN
TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.
VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.
Specifications
Model Name
Tranquil 140 ARGB
Fan Type
ARGB Fan
Dimensions
140 x 140 x 25 mm
Bearing Type
FDB
LED Type
Addressable RGB
Fan Speed
450±100~1500±150 RPM
Airflow
22.18~89.72 CFM
Air Pressure
0.14~1.82 mmH2O
Fan Noise Level
18.6~27.5 dB(A)
Lifespan
50,000 hours / 25?
Connector
FAN: 4-pin PWM | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
DC 7-13.8 V
Rated Current
FAN: 0.12 (MAX:0.18) A | LED: 0.30A(MAX)
Warranty
2 Years
