Key Features
48 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 18%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Dimensions ( W x D x H )
17.32*8.7*1.73 in.(440*220*44 mm)
Mounting
Rack Mountable
Max Power Consumption
32.29W(220V/50Hz)
Max Heat Dissipation
110.17BTU/h
PERFORMANCE
Switching Capacity
96Gbps
Packet Forwarding Rate
71.4Mpps
MAC Address Table
16K
Buffer Memory
12Mb
Jumbo Frame
12KB
Transfer Method
Store-and-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents

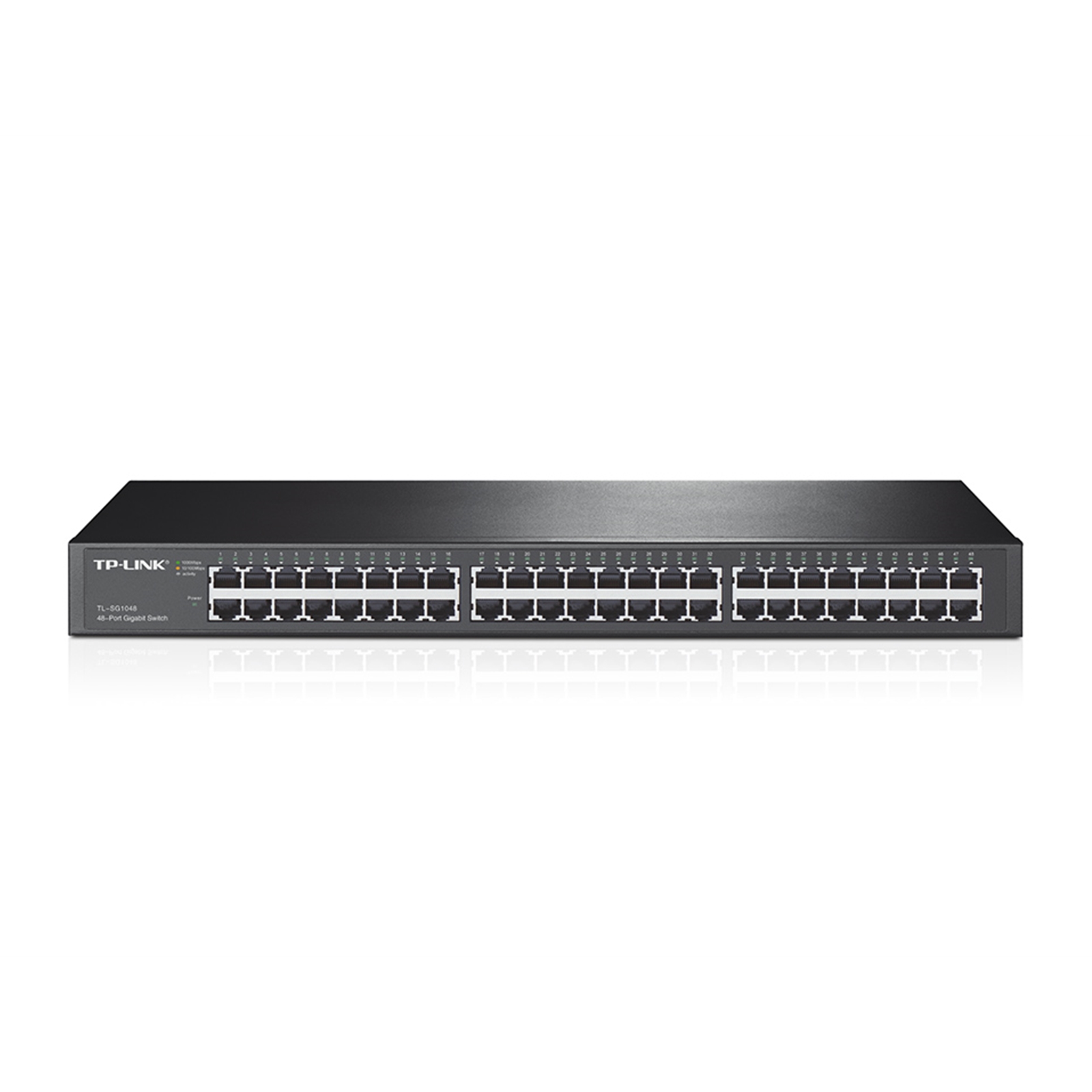

48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing
